How do I add libraries to System Modeler?

Read this article in: Deutsch, Español, Français, 日本語, 한국어, Português, Русский, 中文

System Modeler 14.0 supports Modelica Standard Library (MSL) Versions 3.2.3 and 4.0.0. These libraries are bundled together with System Modeler’s installation files. We recommend that you use the bundled versions of MSL, because we test and optimize these for System Modeler.

System Modeler currently supports a variety of MSL libraries. The System Modeler documentation lists every supported MSL library.

You can install unsupported libraries; however, to work, they must comply with Modelica Versions 3.2.3 or 4.0.0.

Adding Custom Modelica Libraries to System Modeler

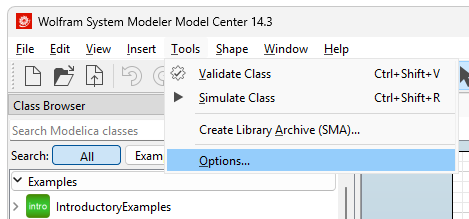

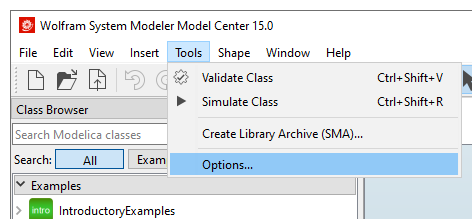

  1. To get to the Options menu, navigate to Tools ► Options. On macOS, navigate to System Modeler ► Preferences.

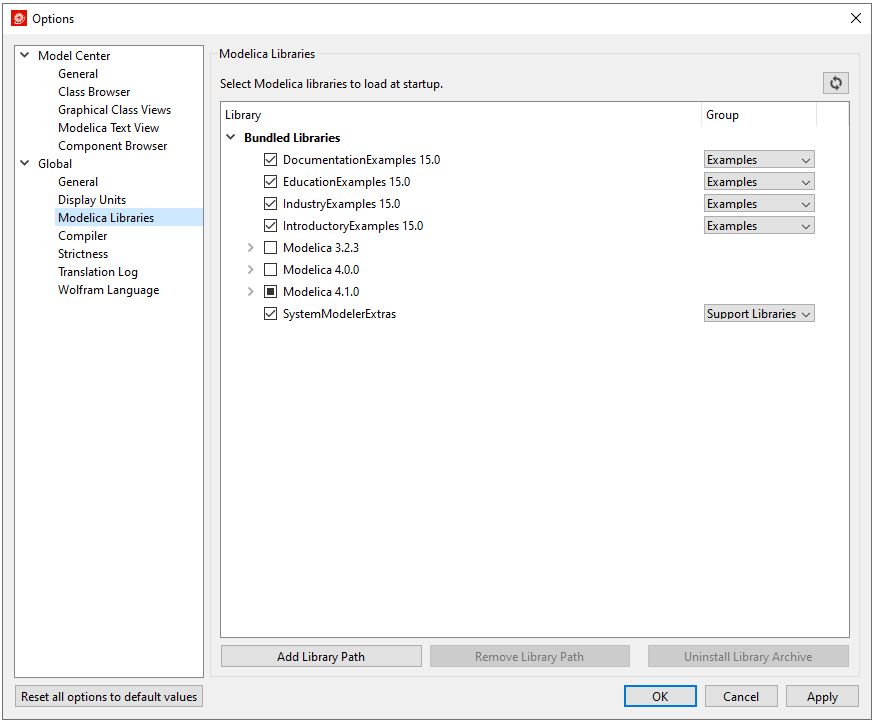

  2. In the Options dialog, select Global ► Modelica Libraries.
  3. In the dialog, click the “Add Library Path” button and navigate to the folder that contains your library files. Select the libraries and click “OK”.
  4. To activate your library, make sure it is checked, then click “Apply”.
  5. To close the dialog, click “OK”.
